Install demo schemas in oracle database12c

November 22, 2015 admin SQL, 1

This tutorial shows how to deploy demo schemas in oracle database 12c

First, we will begin by creating a new pluggable database12c on witch demo schemas should be deployed.

• Open your start meu and search for dbca.bat, it is in %ORACLE_HOME%BIN
• Run dbca.bat as admisitrator

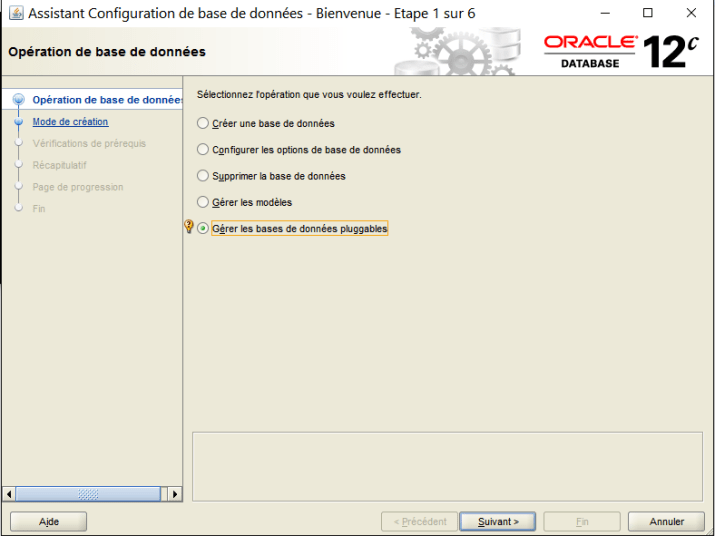

Choose Manage pluggable databases

Create a pluggable database

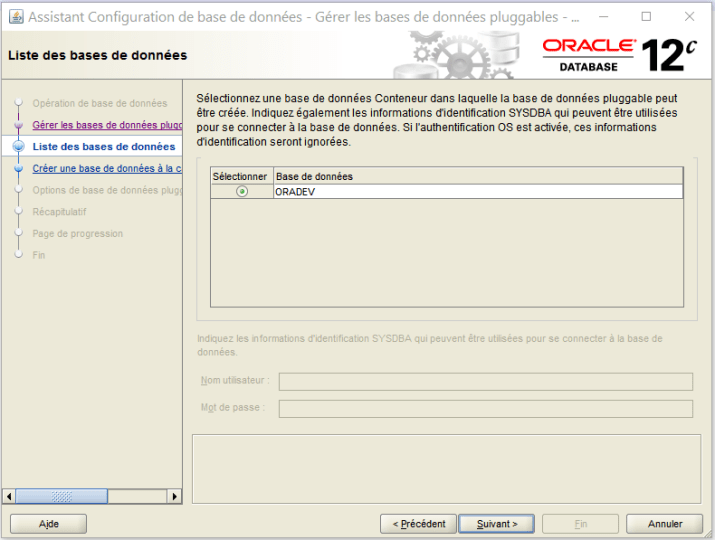

Select a container database in  which our pluggable database should be created (in my case only one container database exists (ORADEV)

Choose the option: create a pluggable database using pdb file set. This pdb file set is sampleschema.xml, search for it in : %ORACLE_HOME%\assistants\dbca\templates

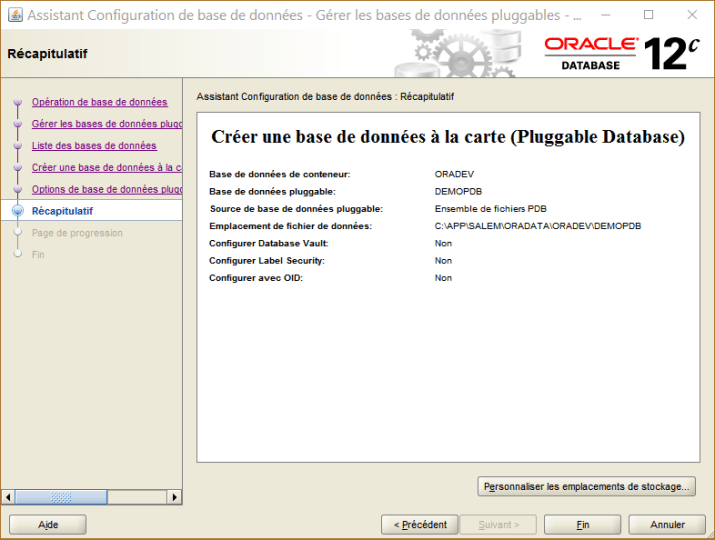

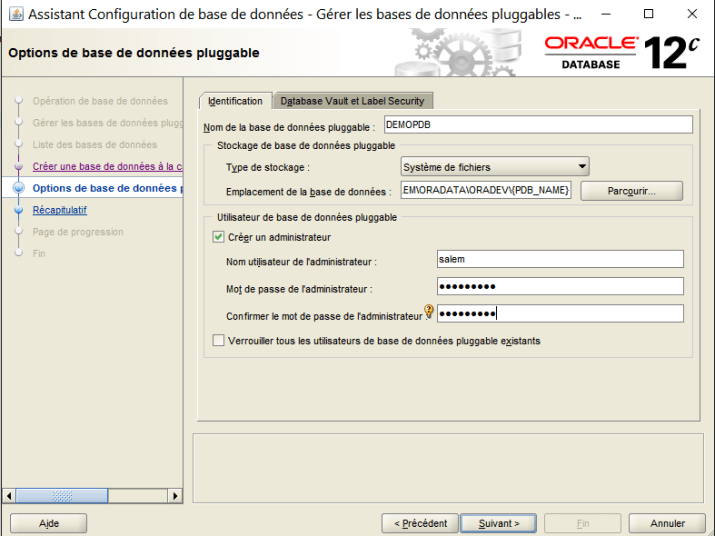

Choose your pdb name (demopdb) and create an admin user

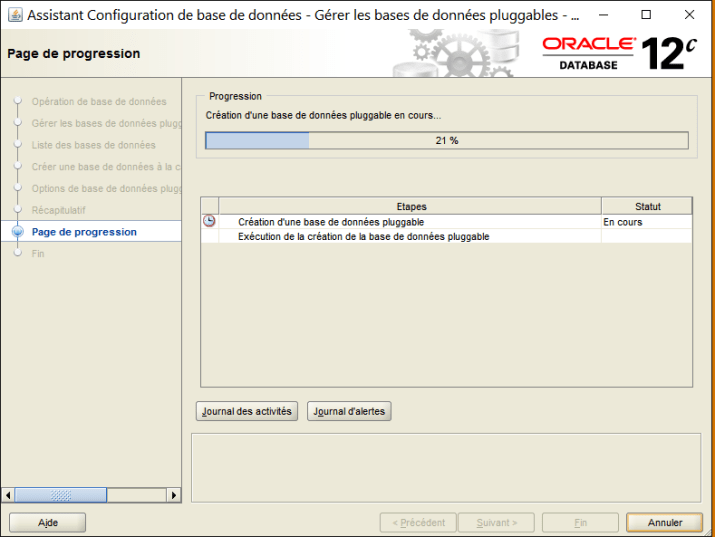

After your pdb database is created and connected successfuly, you login with sqlplus to setup schema users:
open a dos command window and type : sqplus / as sysdba

Microsoft Windows [version 10.0.10586]
(c) 2015 Microsoft Corporation. Tous droits réservés.

C:\WINDOWS\system32>sqlplus / as sysdba;

SQL*Plus: Release 12.1.0.2.0 Production on Dim. Nov. 22 14:11:17 2015

Copyright (c) 1982, 2014, Oracle. All rights reserved.
ConnectÚ Ó :
Oracle Database 12c Enterprise Edition Release 12.1.0.2.0 – 64bit Production
With the Partitioning, OLAP, Advanced Analytics and Real Application Testing options

SQL> select name, open_mode from v$pdbs where name=’DEMOPDB’;

NAME OPEN_MODE
—————————— ———-
DEMOPDB READ WRITE

SQL>

• Modify your tnsnames.ora -file by adding an entry for your DEMOPDB pdb database.
• The file is in :%ORACLE_HOME%\NETWORK\ADMIN
• Add the following entry:

## config. for pluggable database demo
DEMOPDB =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = localhost)(PORT = 1521))
(CONNECT_DATA =
(SERVER = DEDICATED)
(SERVICE_NAME = DEMOPDB)
)
)

• Save the file and restart the listener, open a dos command window as an admistrator and type :

Microsoft Windows [version 10.0.10586]
(c) 2015 Microsoft Corporation. Tous droits réservés.

C:\WINDOWS\system32>lsnrctl reload

LSNRCTL for 64-bit Windows: Version 12.1.0.2.0 – Production on 22-NOV. -2015 14:28:17

Copyright (c) 1991, 2014, Oracle. All rights reserved.

Connexion Ó (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=localhost)(PORT=1521)))
La commande a rÚussi

C:\WINDOWS\system32>

• loginto your demopdb as sys
  SQL*Plus: Release 12.1.0.2.0 Production on Dim. Nov. 22 14:38:25 2015

Copyright (c) 1982, 2014, Oracle. All rights reserved.
ConnectÚ Ó :
Oracle Database 12c Enterprise Edition Release 12.1.0.2.0 – 64bit Production
With the Partitioning, OLAP, Advanced Analytics and Real Application Testing options

• SQL> alter user hr identified by hr account unlock;
• Utilisateur modifiÚ.
• SQL> alter user sh identified by sh account unlock;
• Utilisateur modifiÚ.
• SQL> alter user oe identified by oe account unlock;

Utilisateur modifiÚ.
SQL> conn hr/hr@demopdb;
ConnectÚ.
SQL> conn sh/sh@demopdb;
ConnectÚ.
SQL> conn oe/oe@demopdb;
ConnectÚ.
SQL>
