Oracle WebLogic Server 12c: Configuring JMS Servers and Destinations

November 28, 2020 admin Weblogic12c, Forms12c, 0

Introduction
This tutorial shows how to create and configure Java Message Service (JMS) servers, queues, and topics in an instance of Oracle WebLogic Server 12c.
We will use a web application to post messages to the queue and topic and the Oracle WebLogic Server 12c (12.1.1) administration console to Monitor the queue and topic.

Main steps:

Configure a ManagedWeblogic Server
Configue a JMS Server
Configure a JMS Queue and Topic
Customize the Queue/Topic Display
Test the JMS Queue and Topic

Step 1: Configure a ManagedWeblogic Server

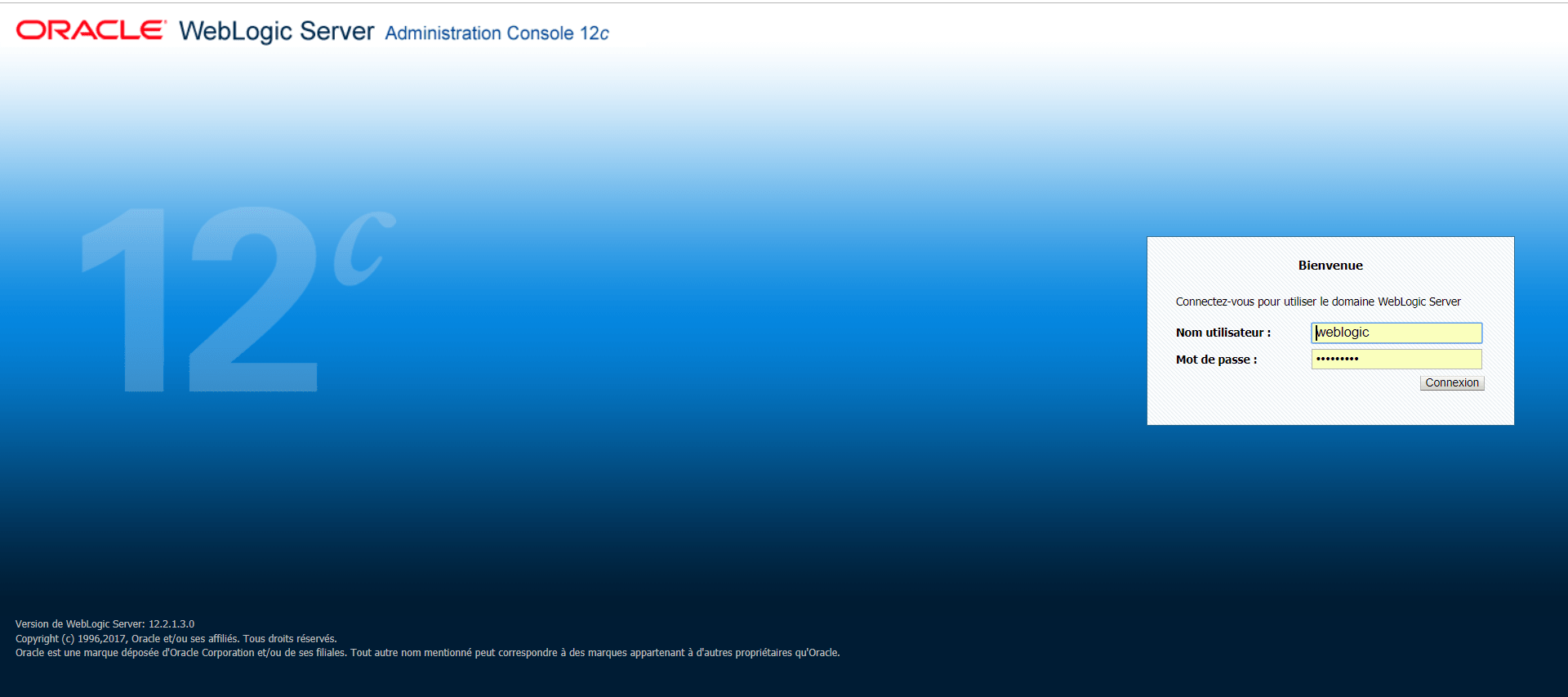

First, log to the Weblogic Server using the Weblogic Server Administration Console

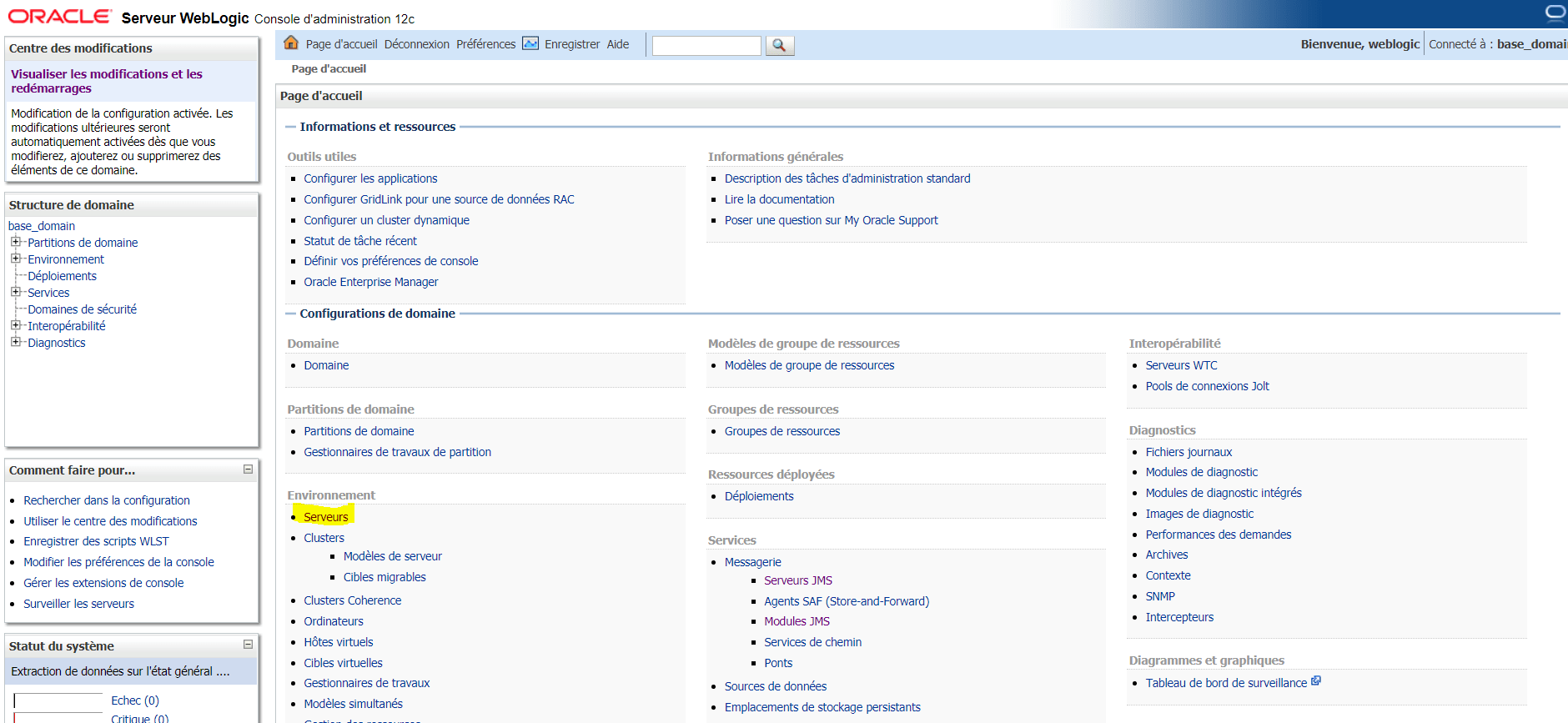

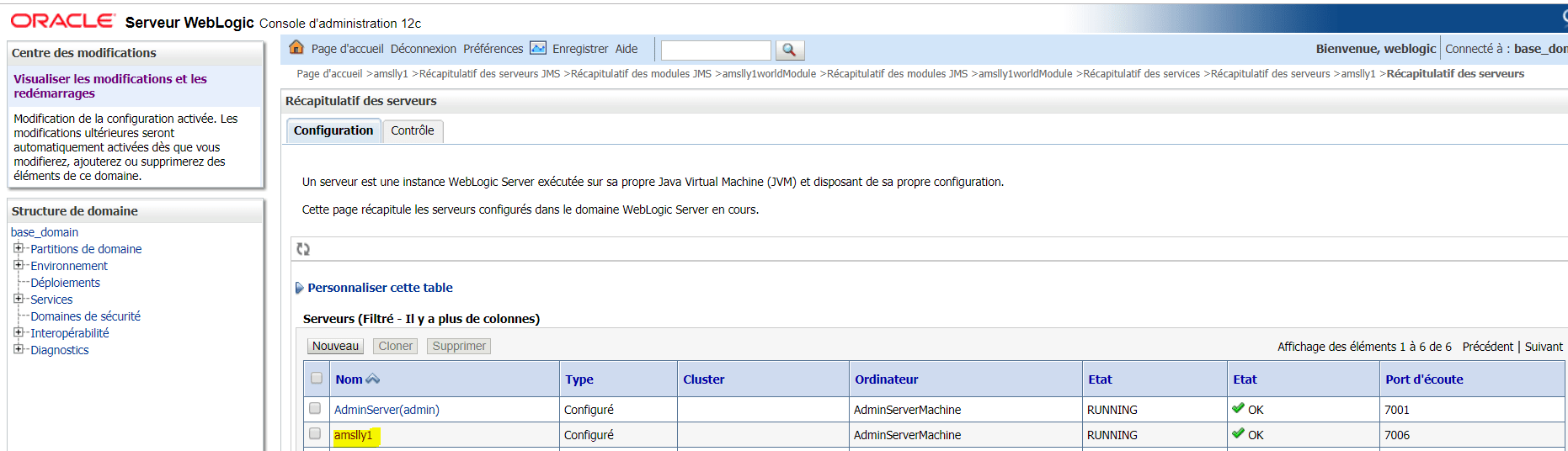

Select servers, to create a new server

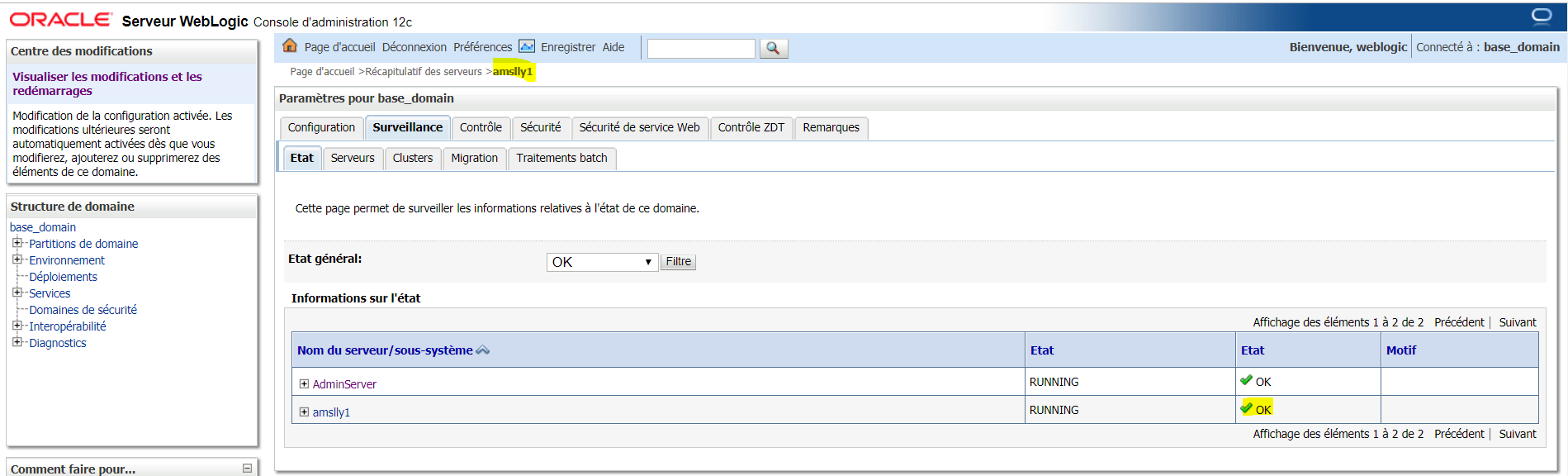

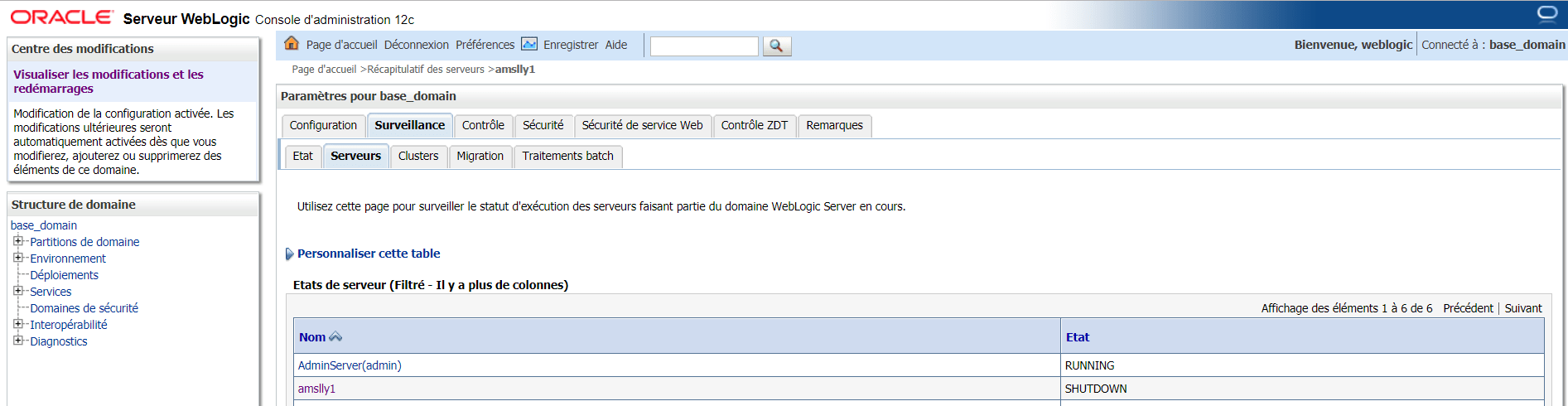

Once the new server created, we need to start it.

Step2 : Configue a JMS Server

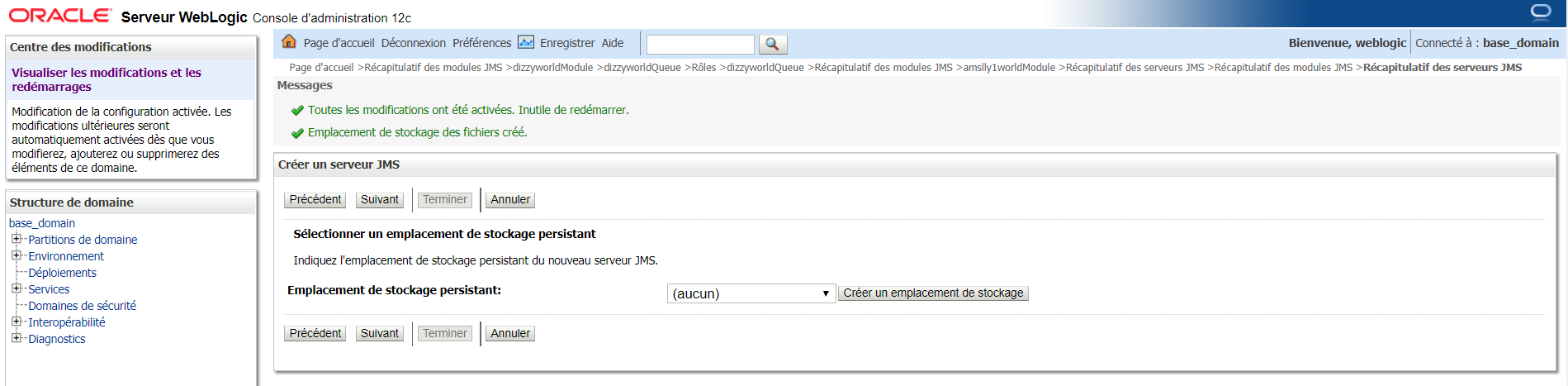

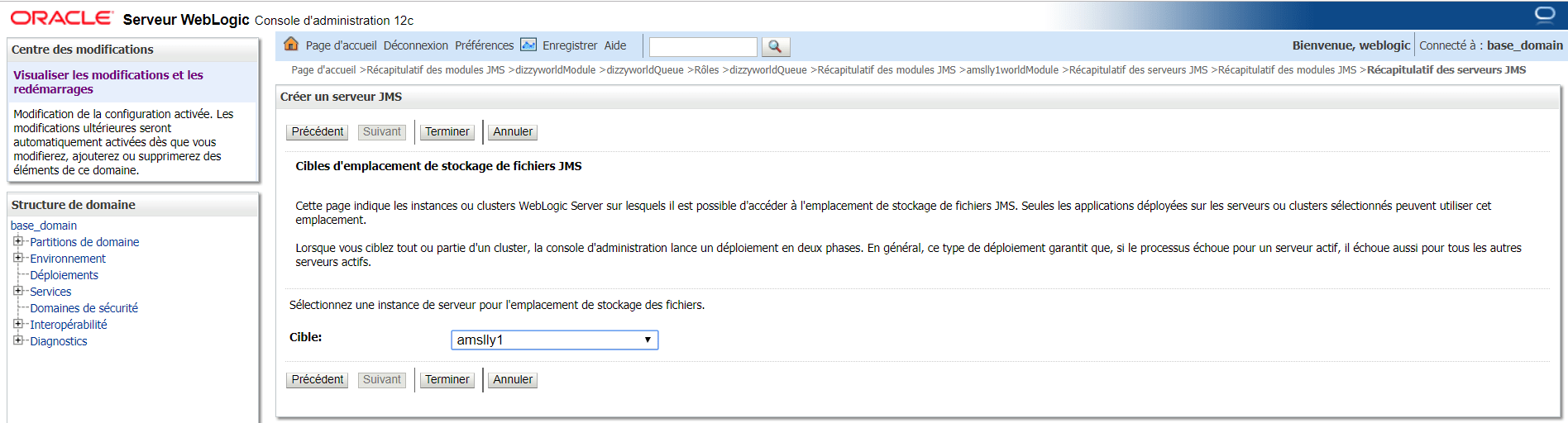

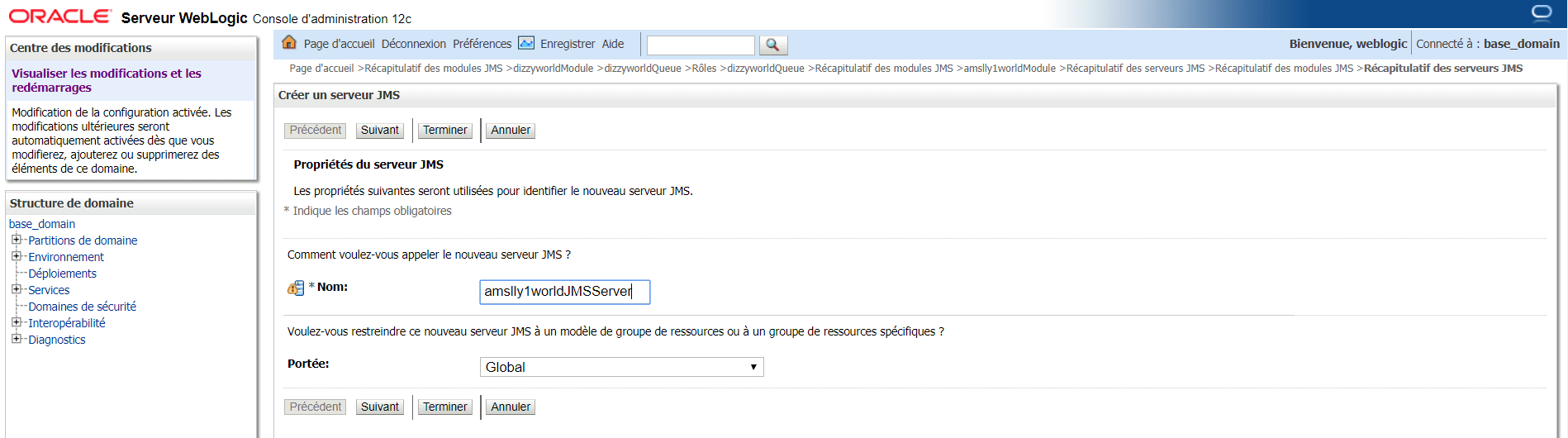

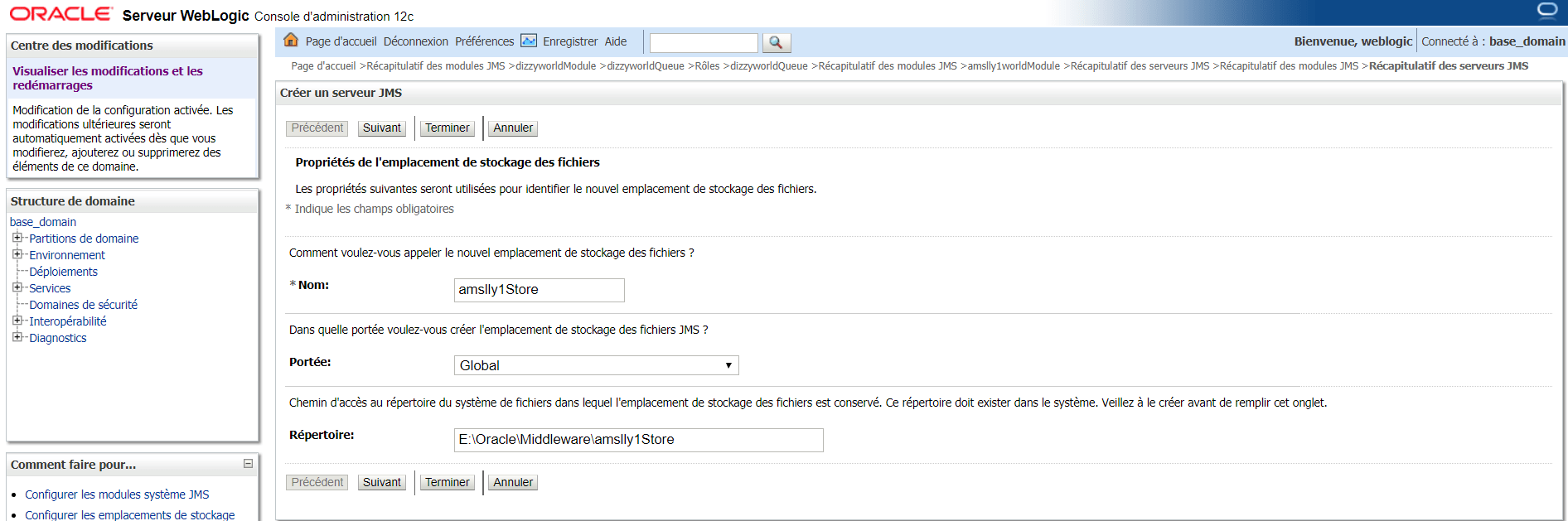

Select JMS Servers / Create a new JMS Server

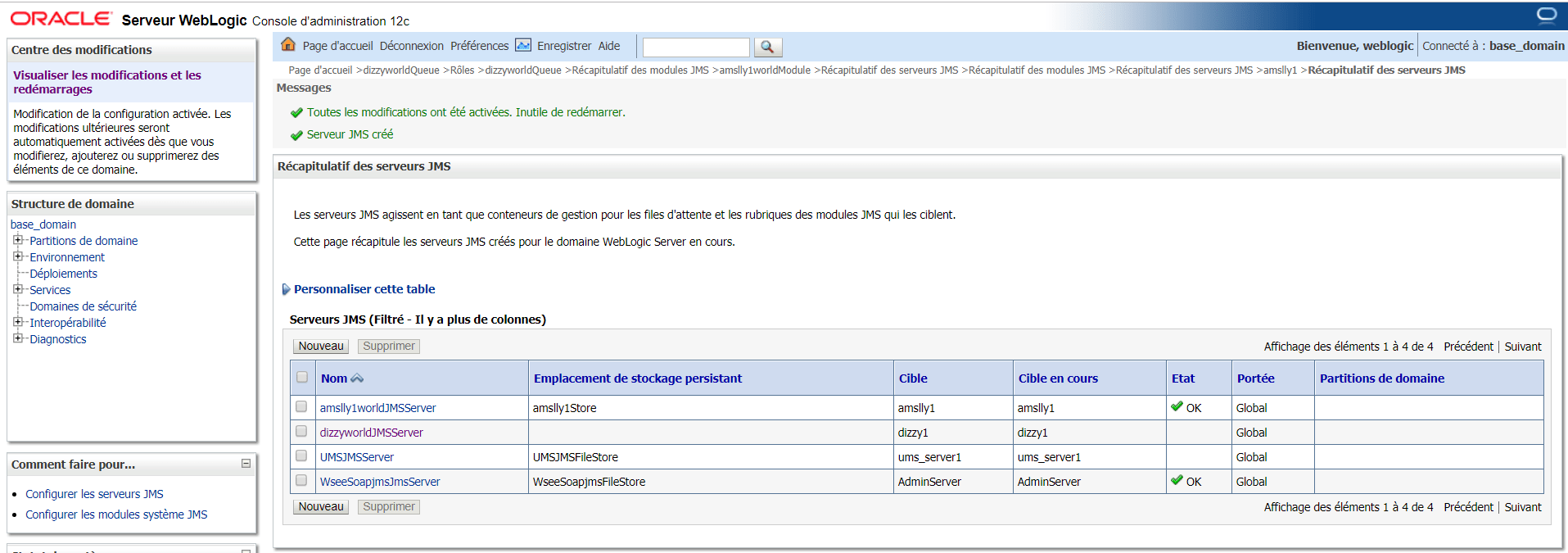

The message “JMS Server created successfully.” is displayed.

Step 3: Configure a JMS Queue and Topic
Log again into the WeblogicServer administration console and select JMS Modules

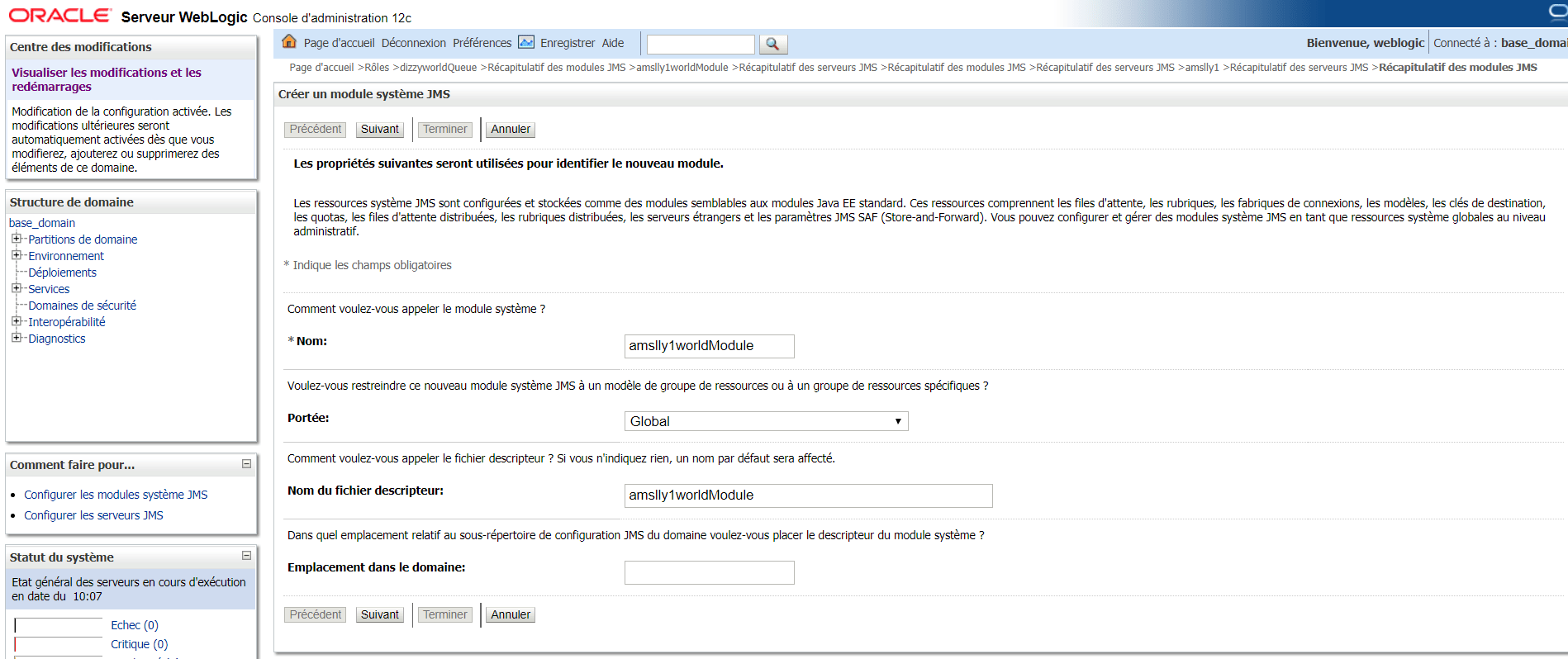

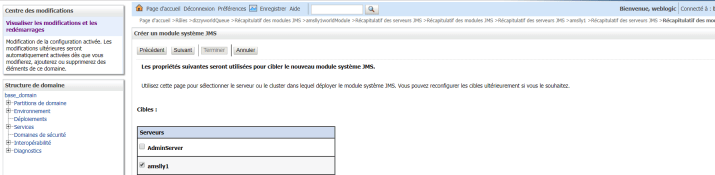

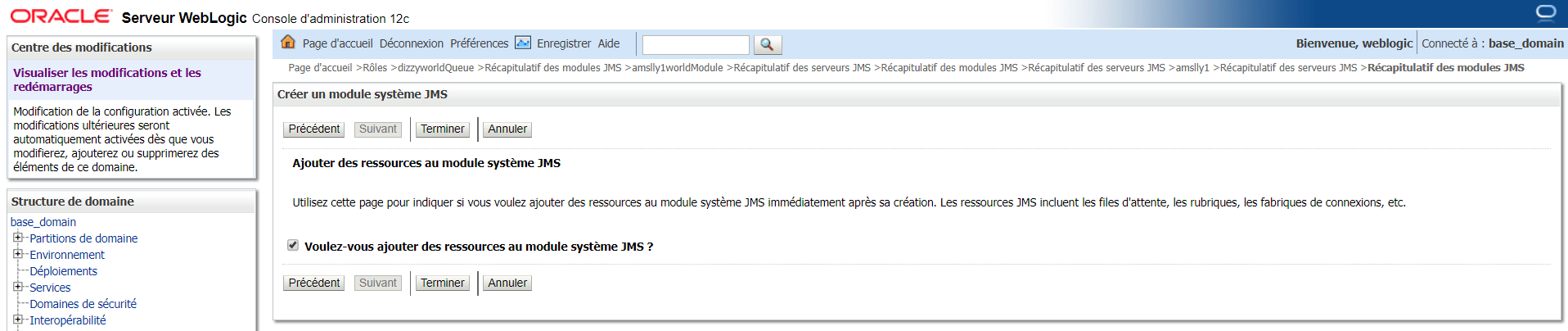

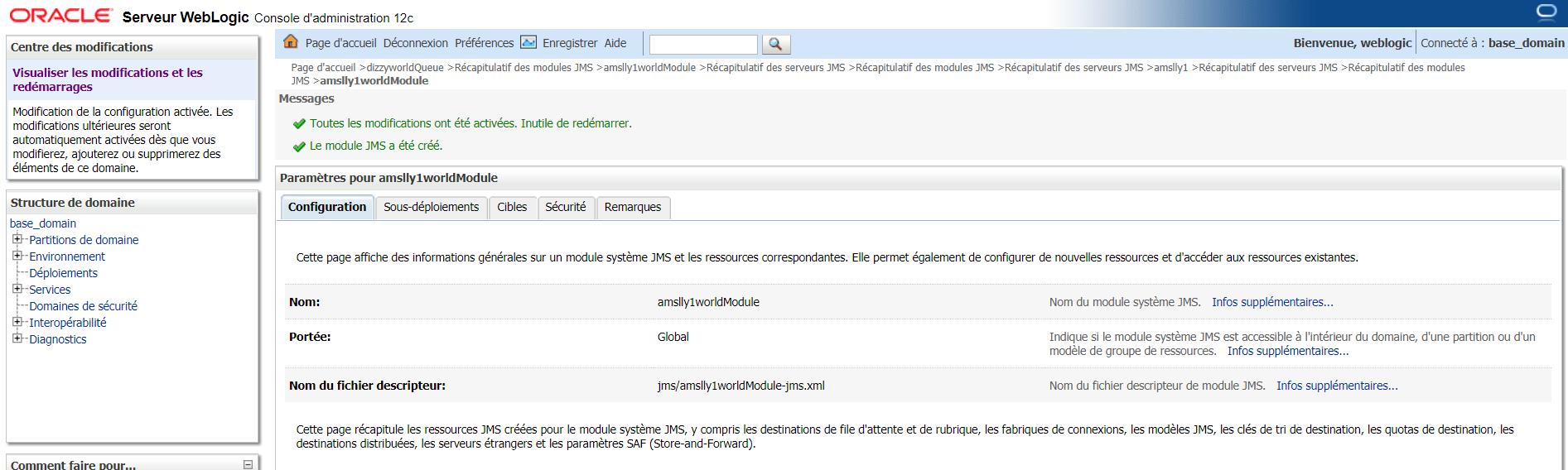

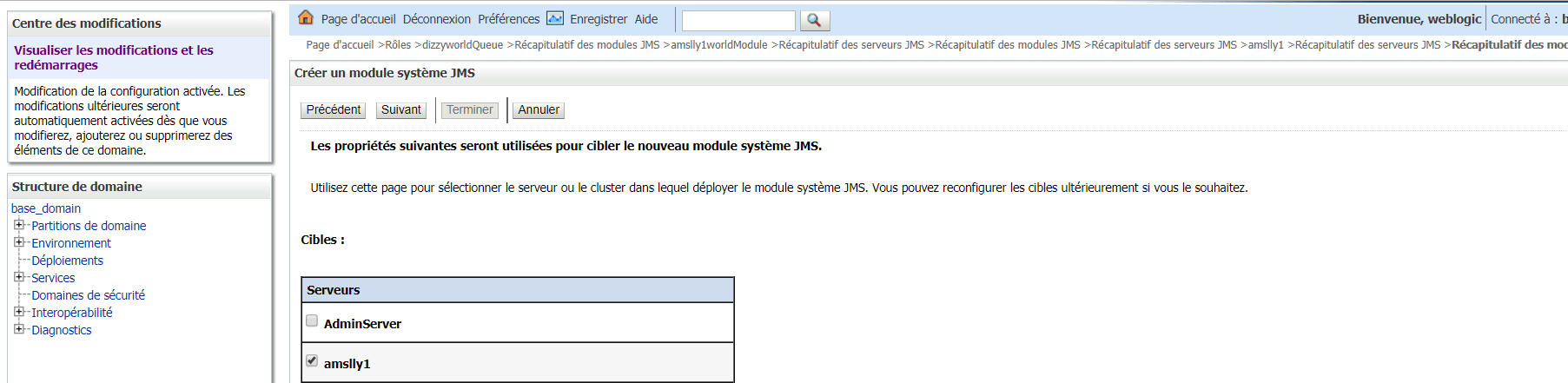

create a JMSModule

create a JMSsubModule

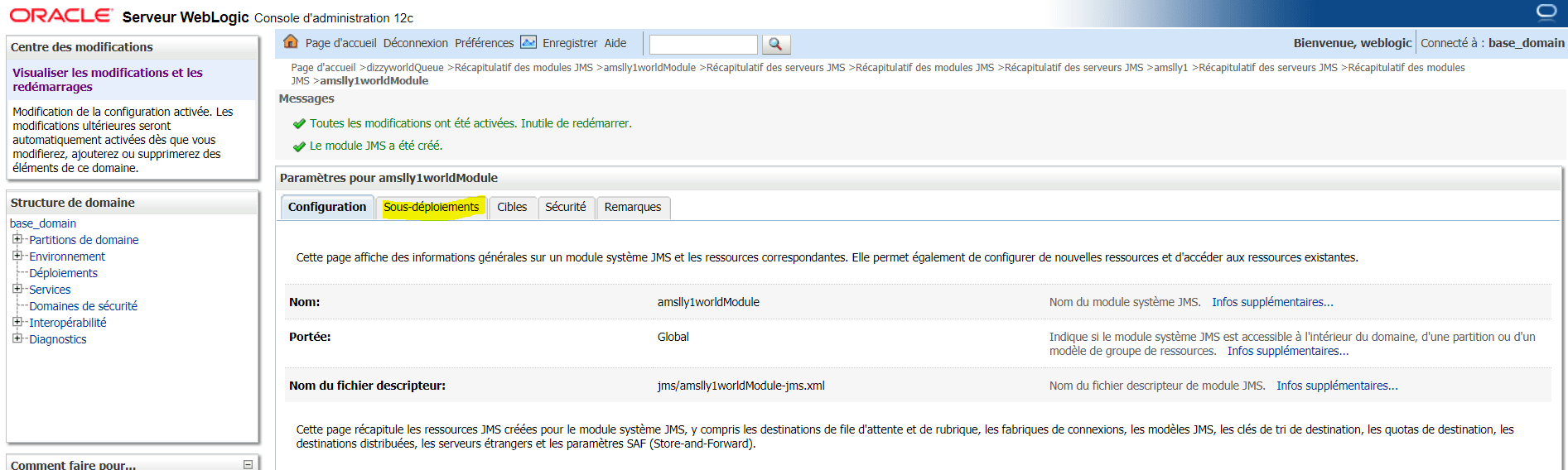

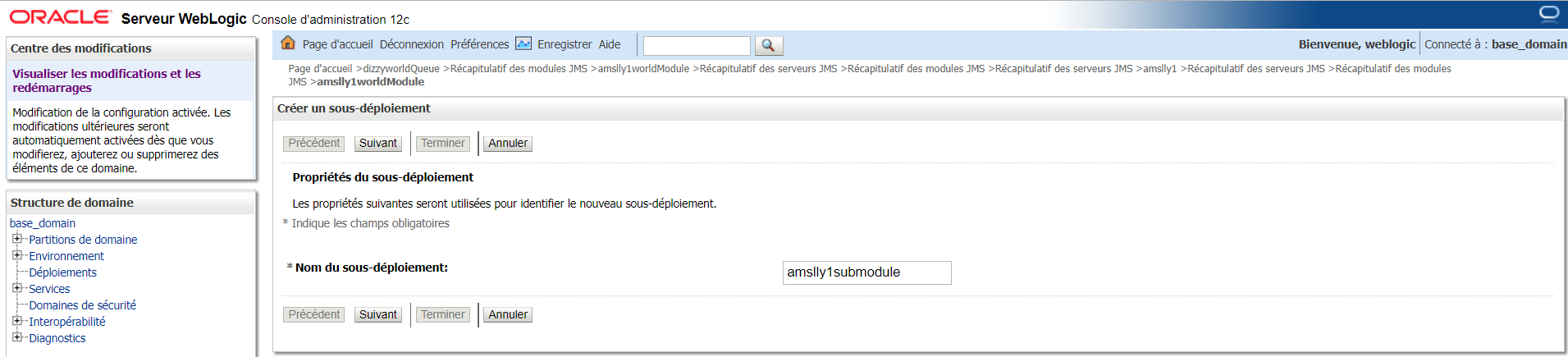

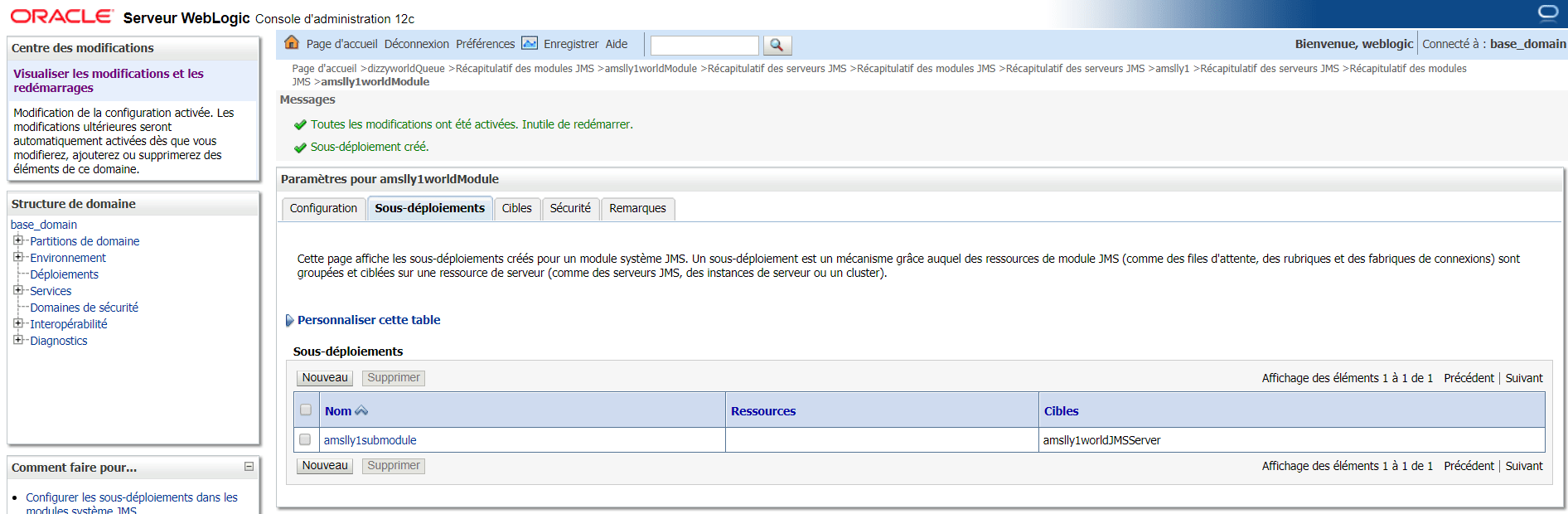

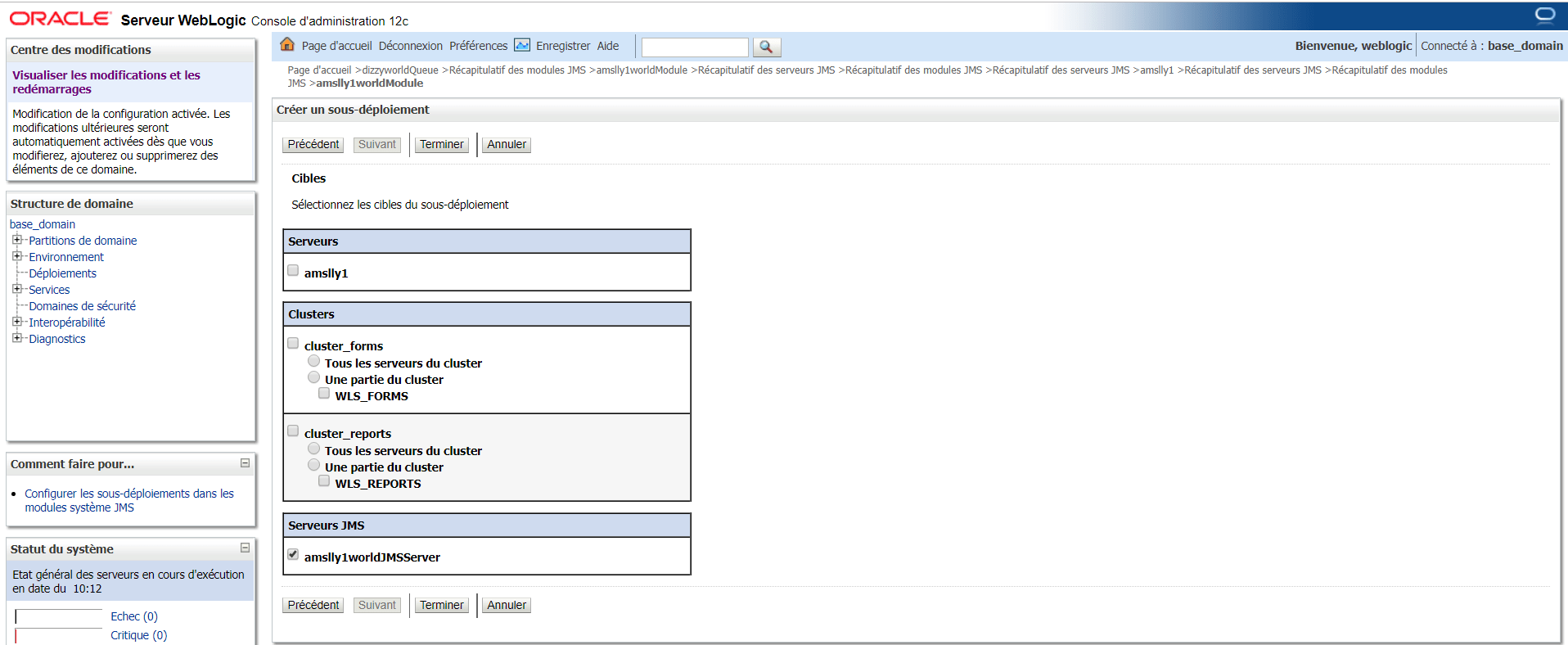

Choose Subdeployments and create a new one

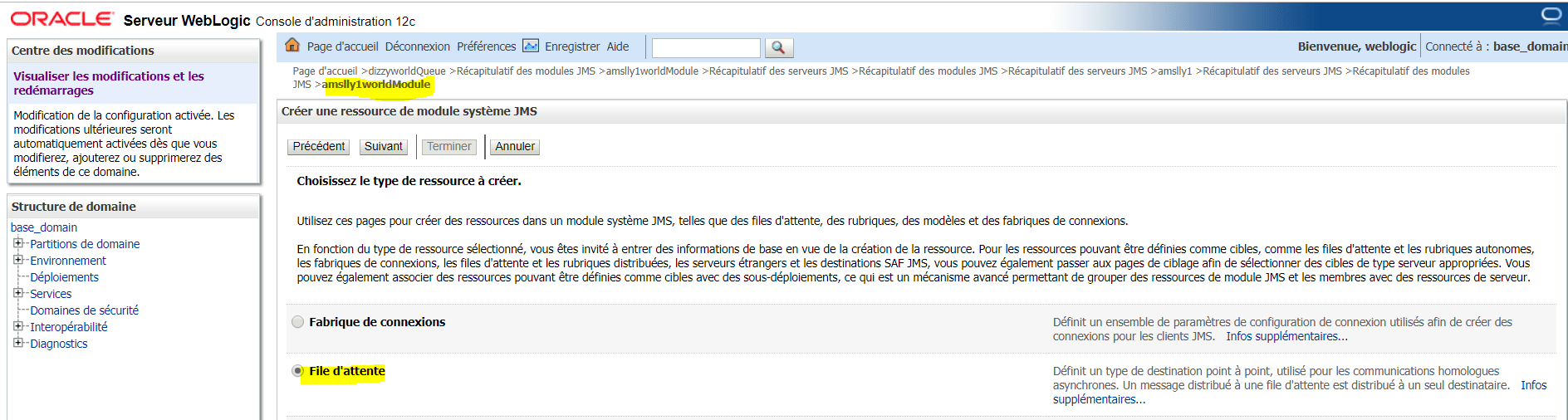

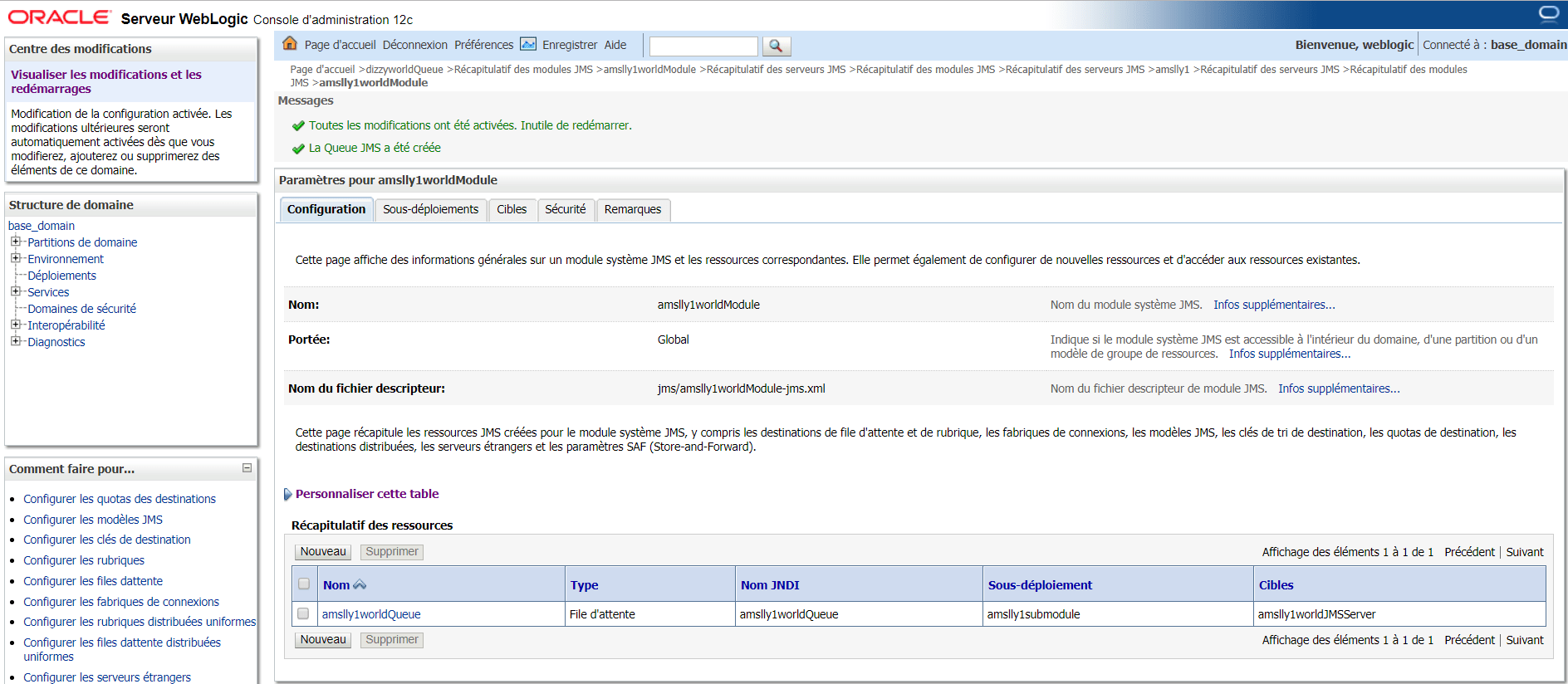

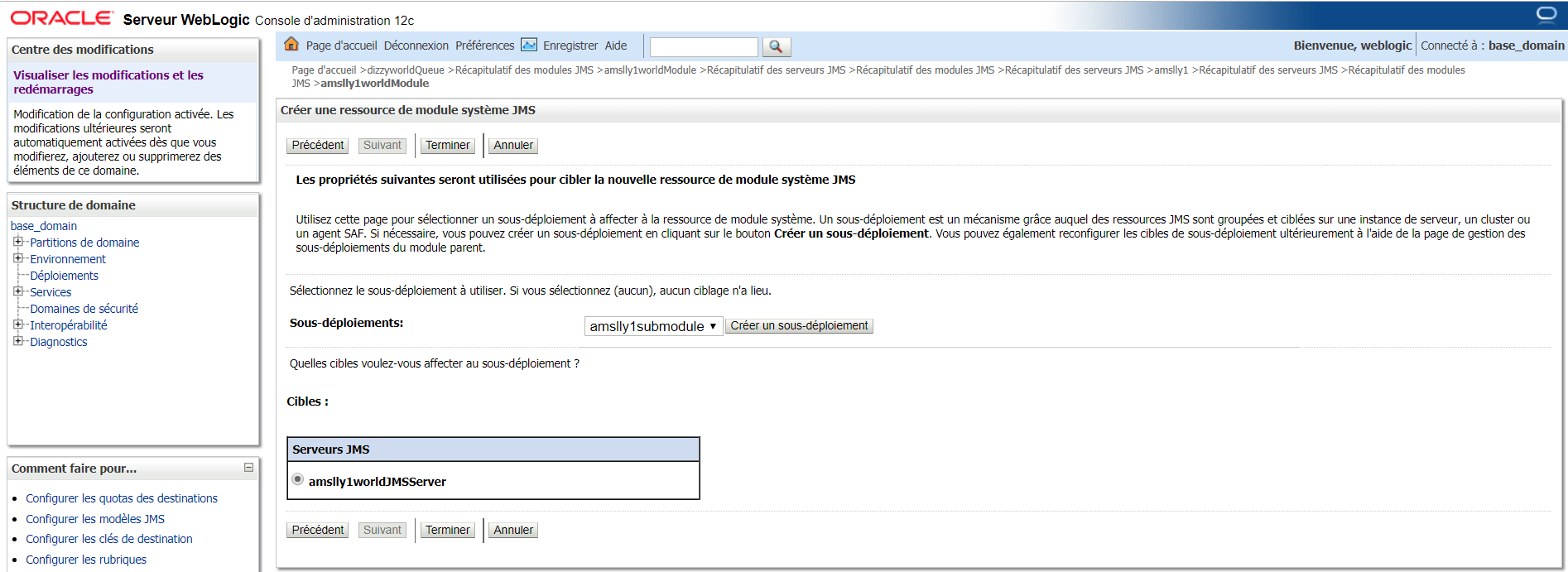

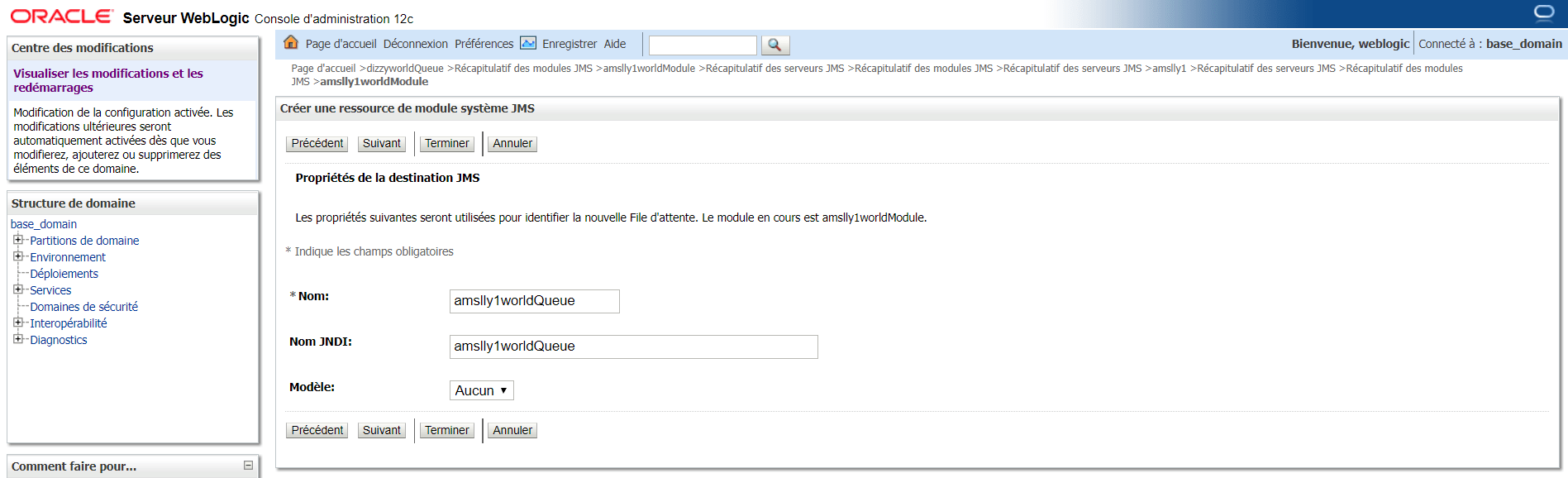

Under the Settings for amsllyworldModule, above the Summary of Resources table, click the New button

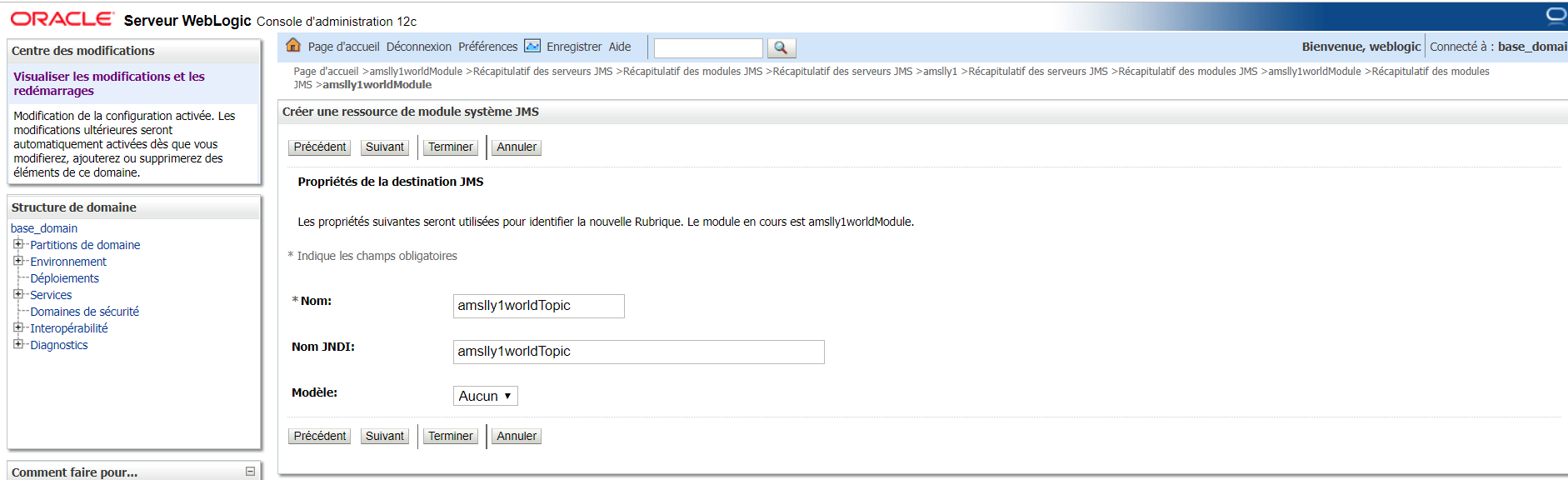

Configure a Topic

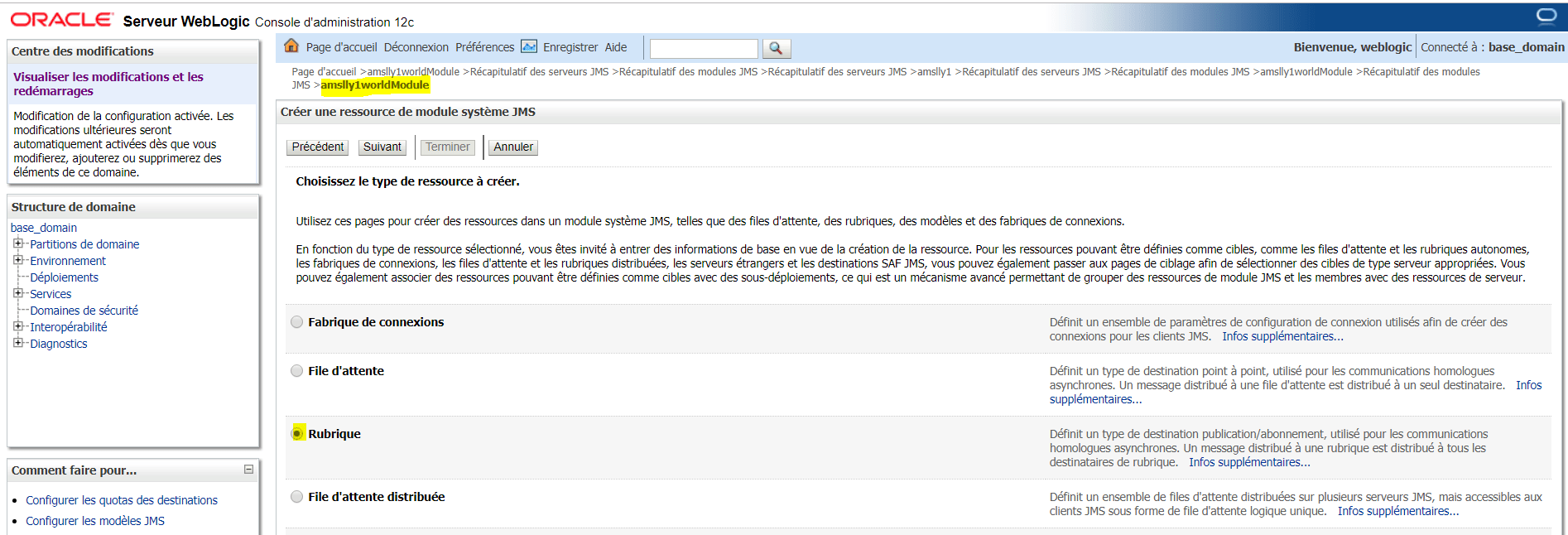

This time, for the type of resource, select the Topic radio button

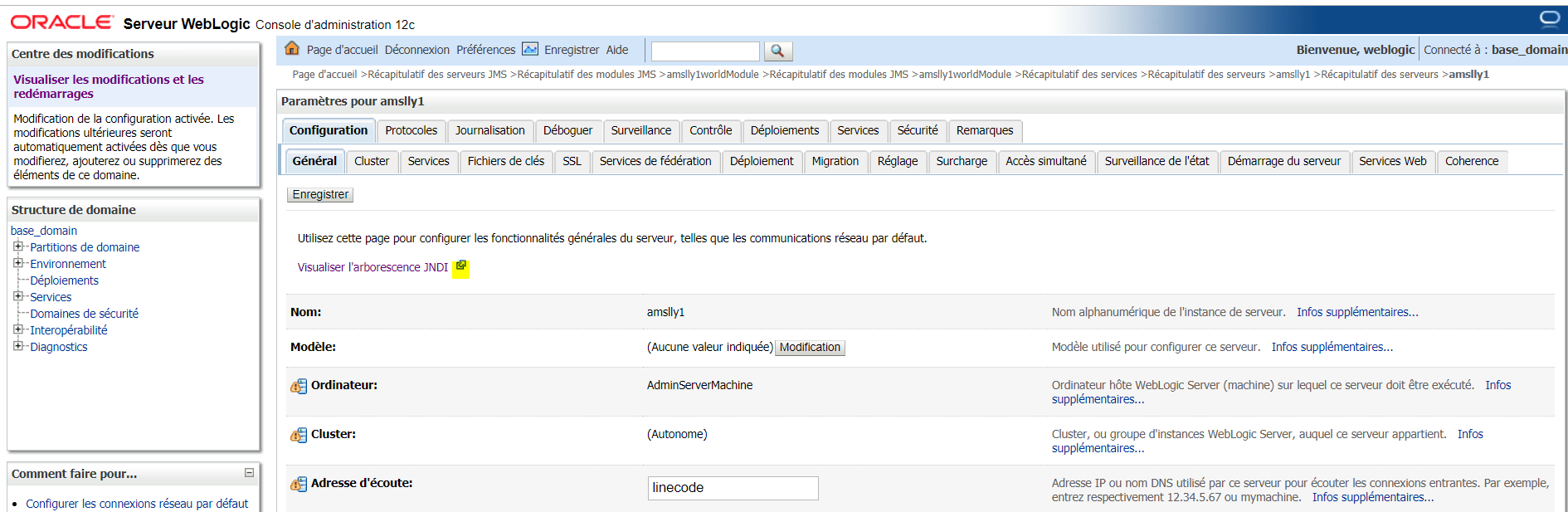

In the Settings for amslly, under the Configuration tab and the General subtab, click the link View JNDI Tree

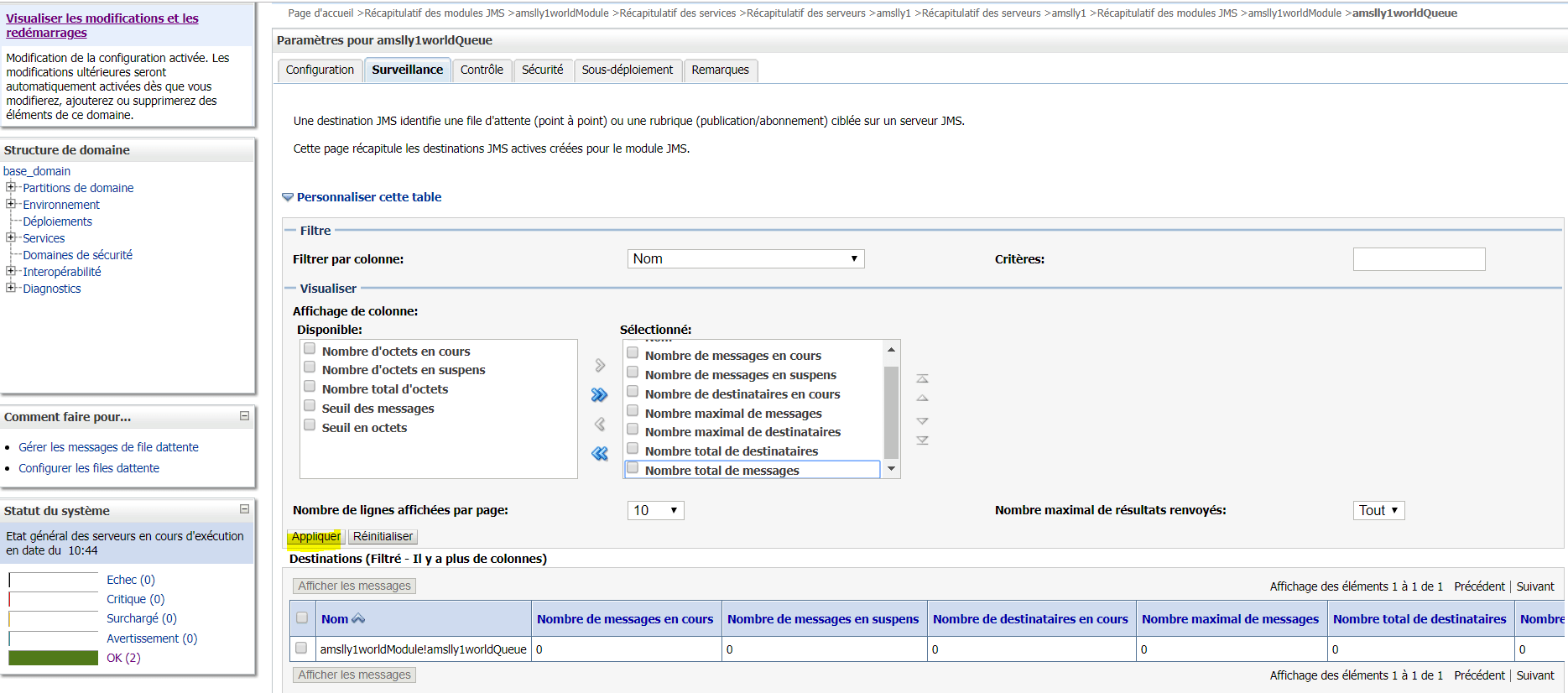

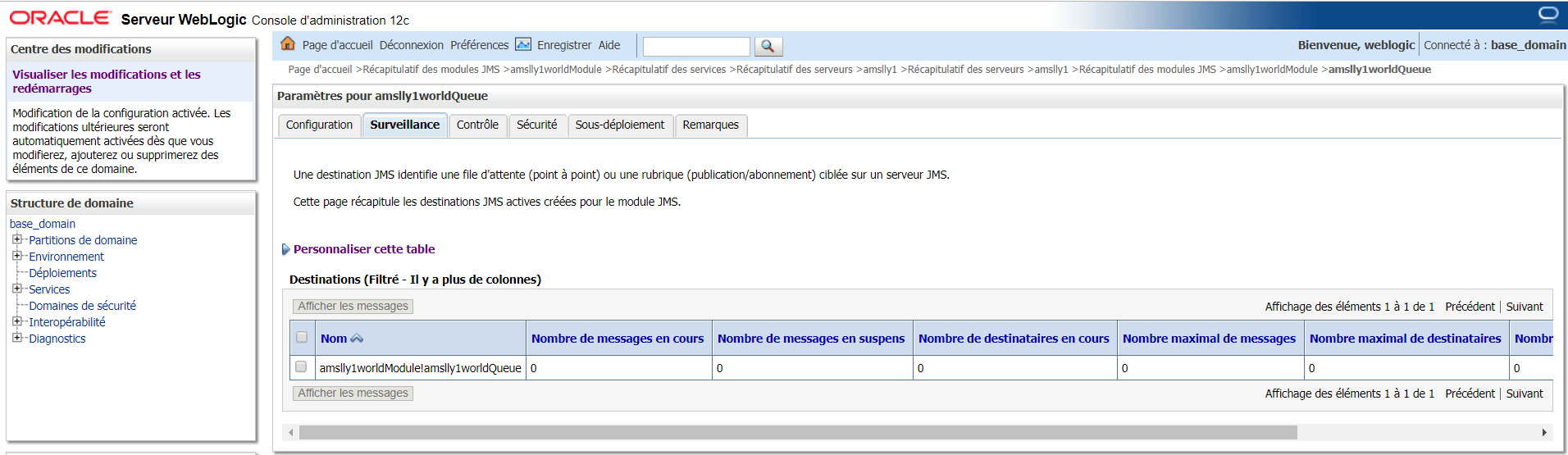

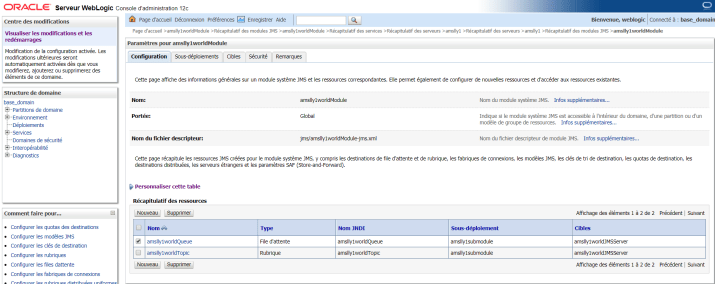

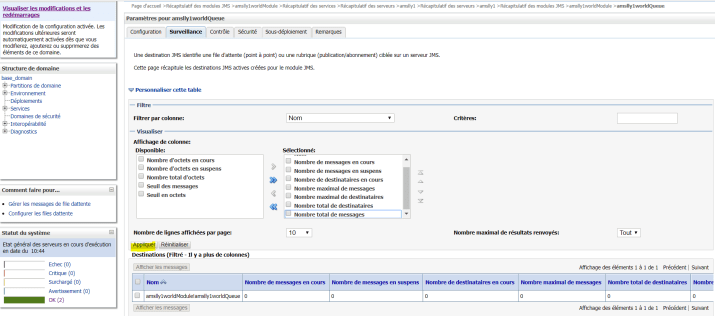

Step 4: Customize the Queue/Topic Display

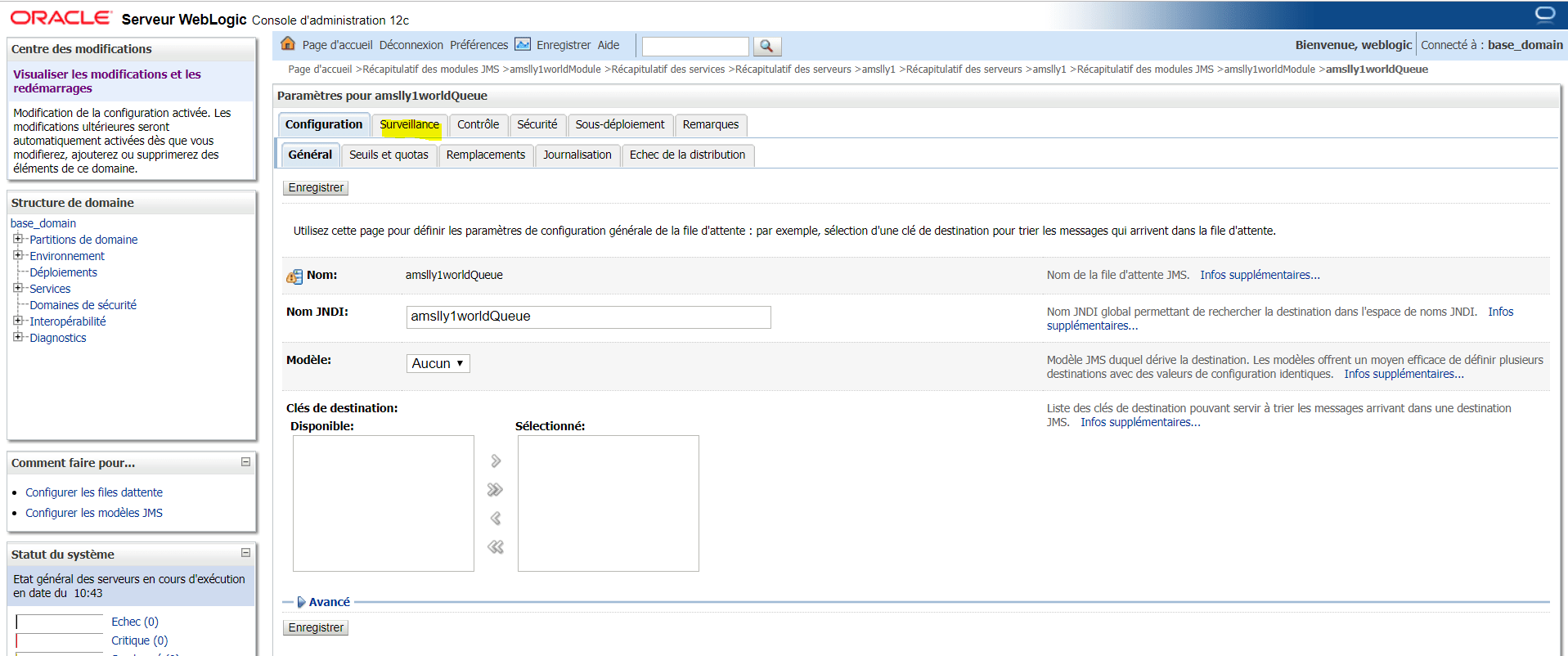

To customize how queues and topics are displayed in the administration console, perform the following steps:
In the administration console under Domain Structure, go back under Services, then Messaging, and click JMS Modules.

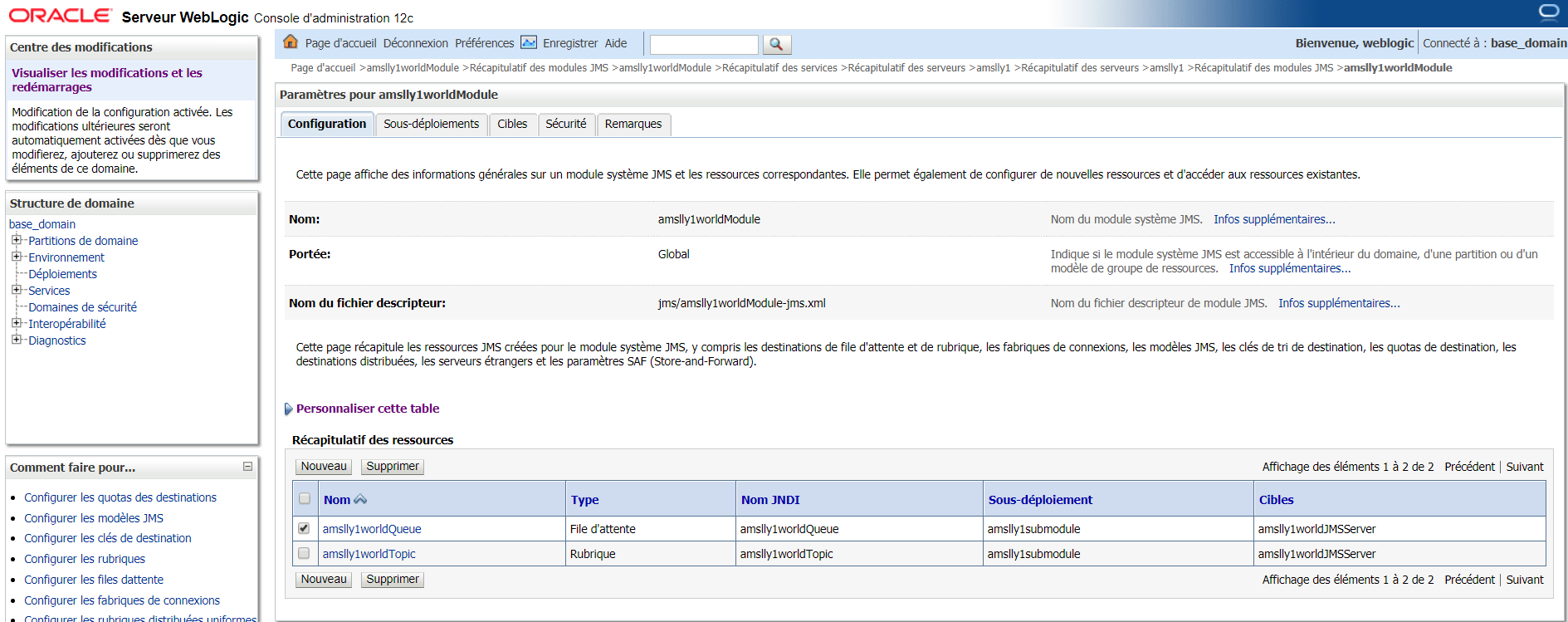

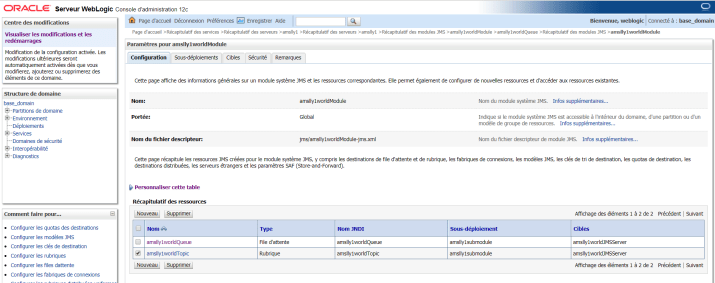

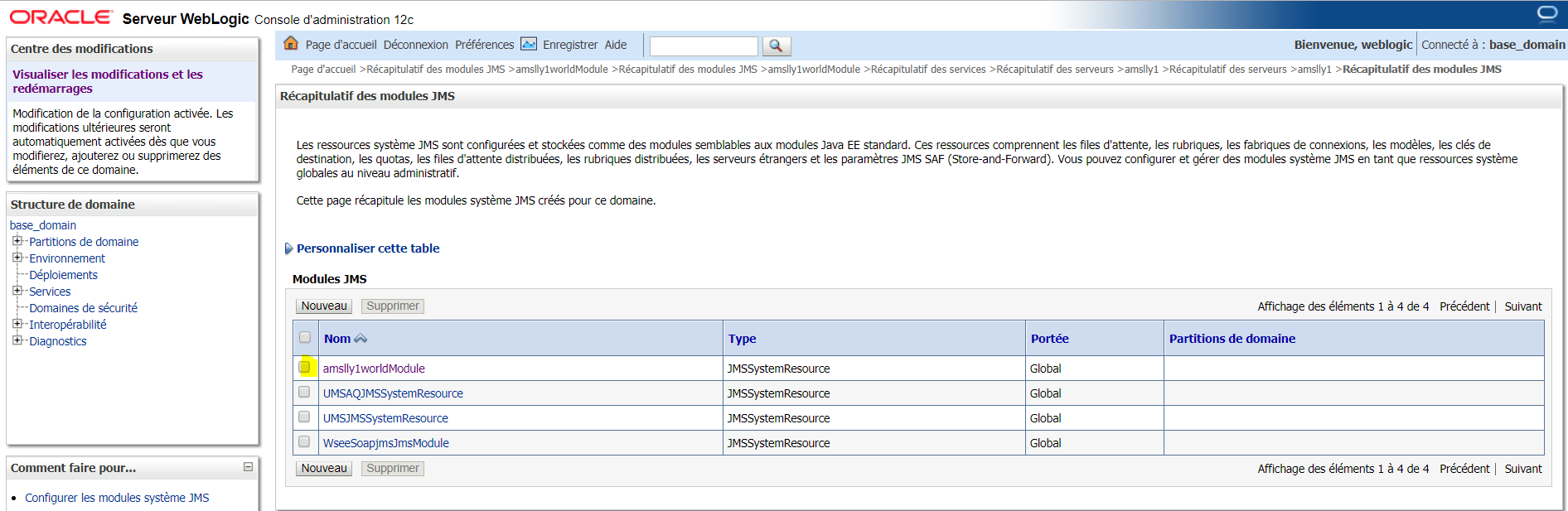

In the JMS Modules table, click on amsllyworldModule

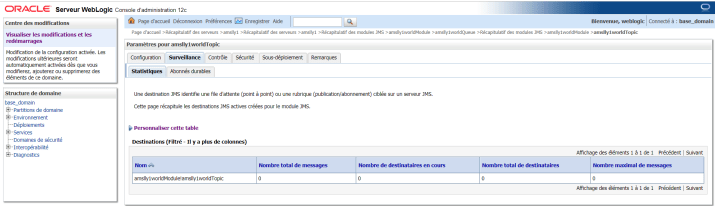

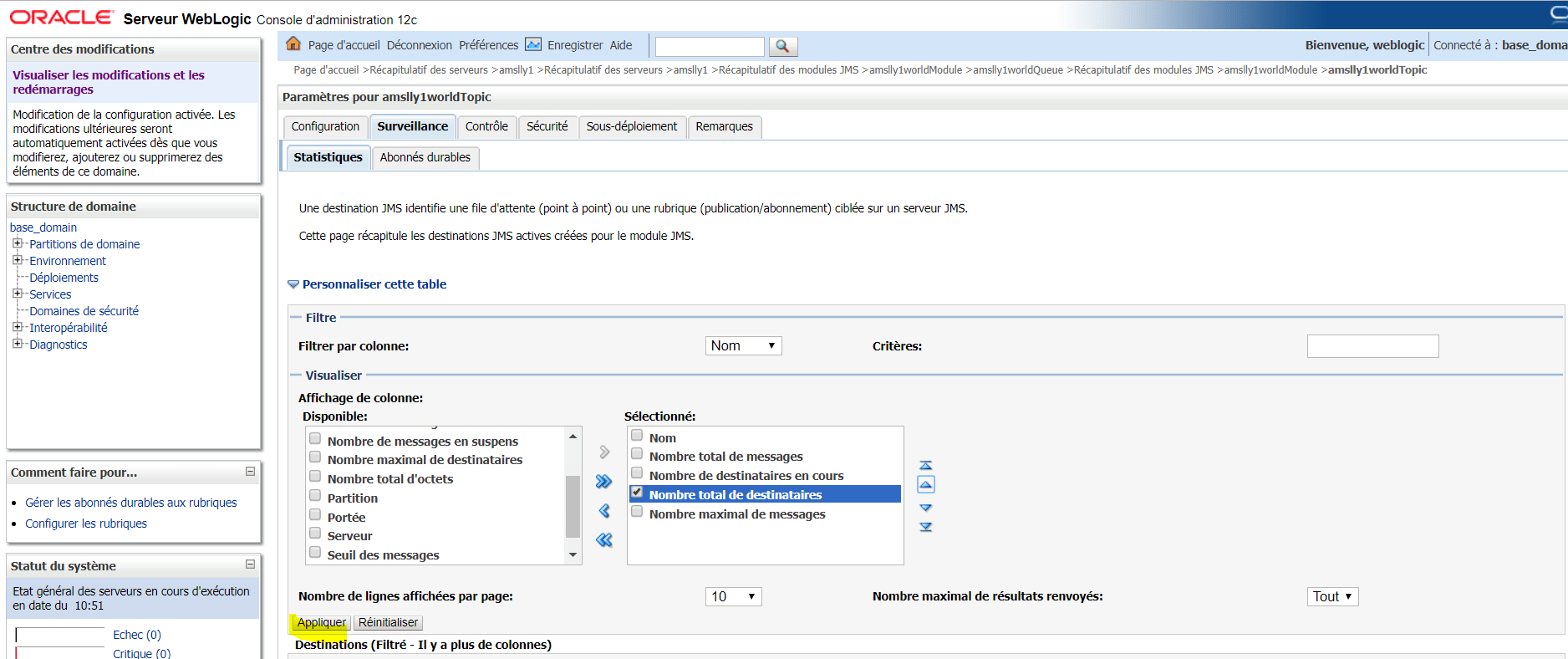

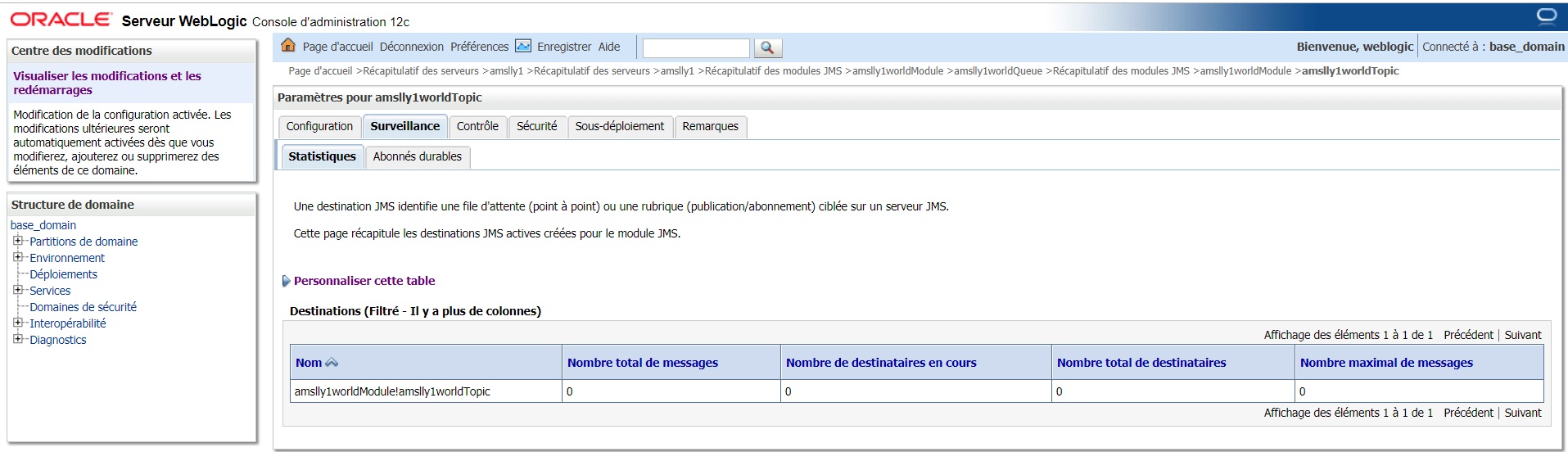

Customize the topic

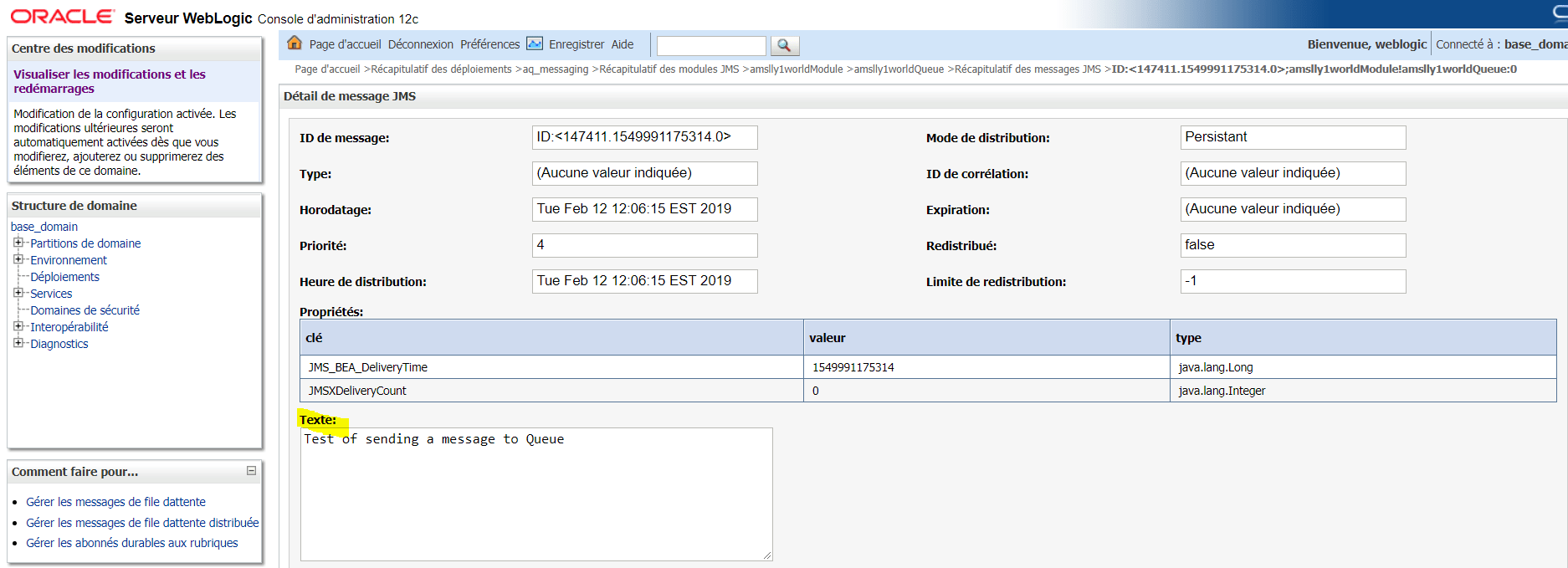

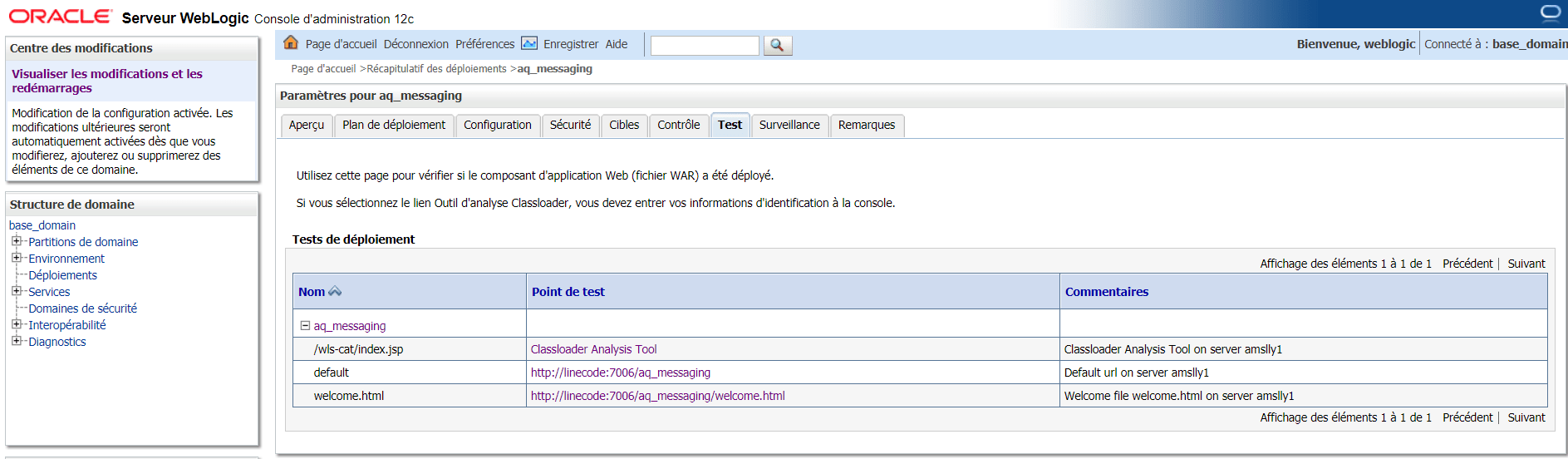

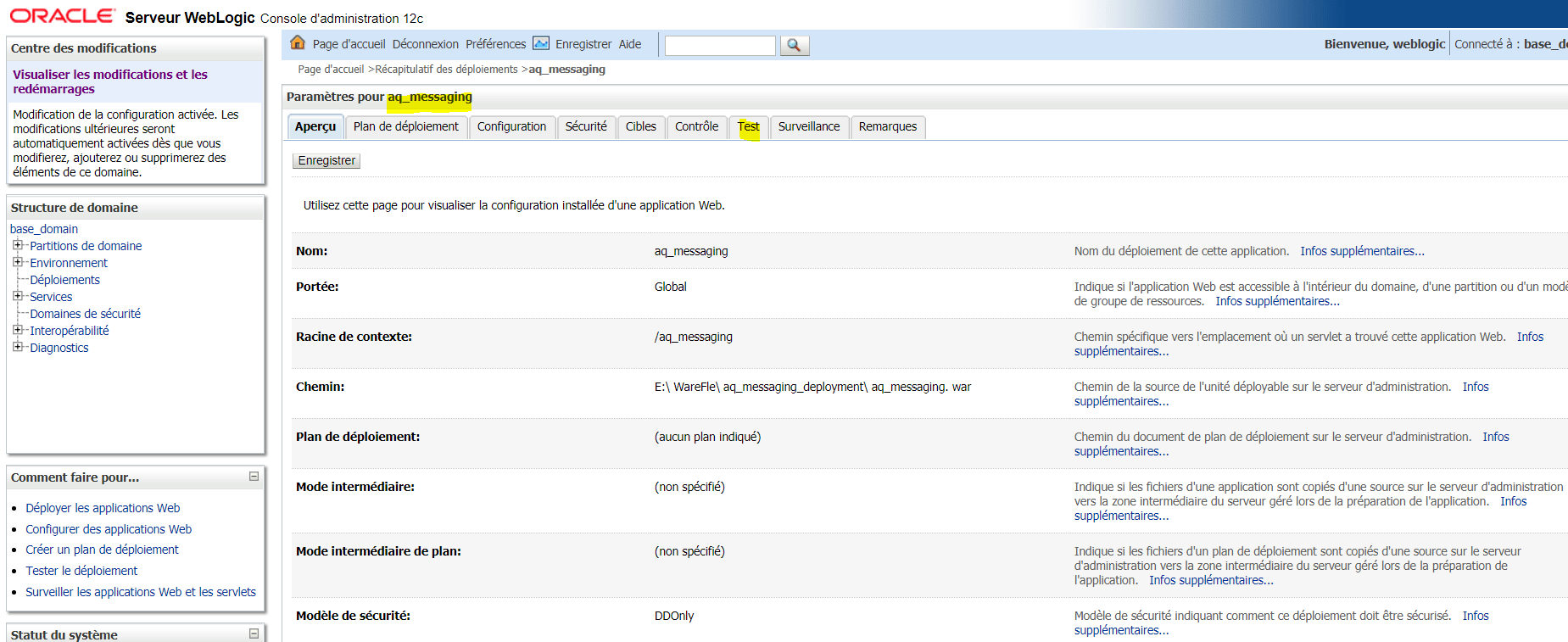

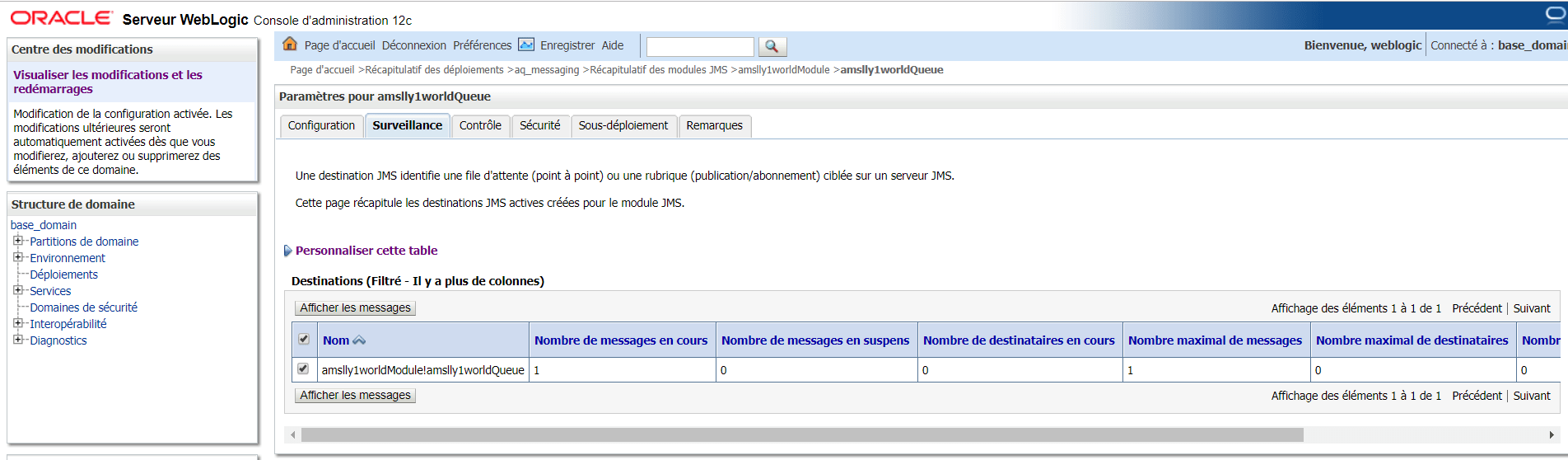

Test the JMS Queue and Topic
To test the JMS queue and topic with the supplied web application, perform the following steps:
Download the aq_messaging_test.zip file to the machine where your WebLogic Server domain and servers are. The zip file contains two files:

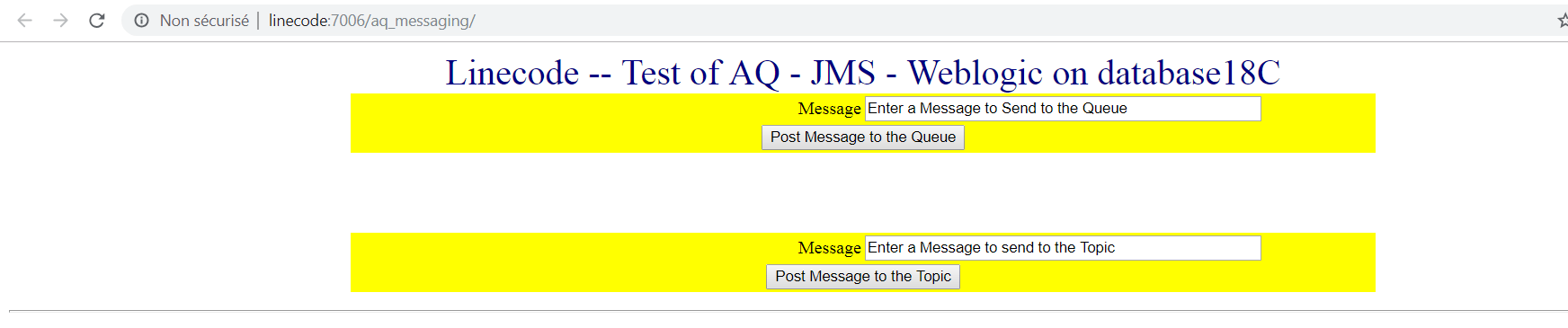

aq_messaging.war : A simple web application used to post messages to the queue and topic
deploy_testjms.p : A WebLogic Scripting Tool (WLST) script used to deploy the web application
